Parking-Lift (PJS)

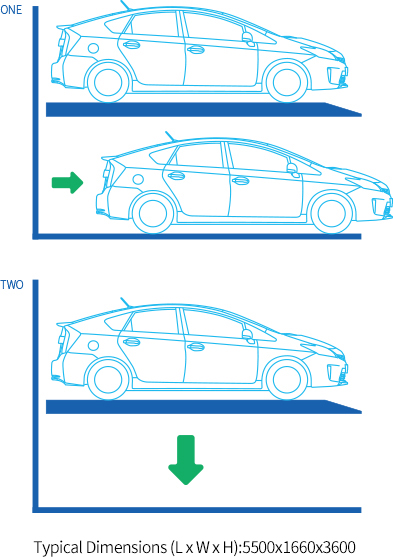

Utilizing a motor to drive chains to lift parking pallets, parking-lift is simple and cost friendly
Easy to assemble and easy to relocate, 2-4 vehicles can be parked on the footprint of one parking space.
Specifications
Model
PJS Parking Lift
Parking levels
≤ 4
Optimal configuration of parking spaces
2 parking spaces per set
Compatible vehicle dimensions (mm)
5,200*1,850*1,550
Laden weight (kg)
≤ 2,000
Mechanical components
Motors and chains
Power consumption for vertical movements
2.2kW
Vertical movement speed
2.9m/min
Identification element
Key switch
Power Supply
Three Phase Five Wire AC380V / 50Hz
